Megadraconema
cornutum male A=entire body; B=surface anterior;
C=spicules; D=detail of head capsule. Scale bars: 50 um (A), 20 um
(B�D), 10 um (E).
Drawings from Rho et al., 2011 |

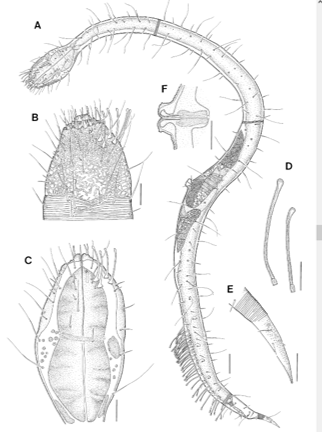

Megadraconema cornutum
female A=entire body; B=surface anterior; C=pharyngeal region; D=posterior
sublateral and sublateral adhesion tube; E=tail region; F: vulva and vagina.
Scale bars: 50 um (A), 20 um (B�F).
Drawings from Rho et al., 2011 |
|
Male
- Monorchic, testis outstretched anteriorly
for 42% of total body length
- Spicules slightly arcuate, 102-114 um
long, up to 5.7% of total body length; capitulum offset, usually
blunt beak-shaped
- Gubernaculum thin, parallel to spicules.
- Tail gradually tapering to non-annulated
conical tip, Somatic setae on tail.
- Caudal gland reaching to posterior fourth
sublateral adhesion tube and ending on well-developed spinneret.
Female:
- Didelphic-amphidelphi, ovaries reflexed to left side.
- Vagina long, pars vaginae distalis surrounded by constrictor
muscle. Vulval lips protruding
- Tail very short, gradually tapering up to conical, smooth
terminus with well-developed spinneret.
Ref: Rho et al., 2011
|
